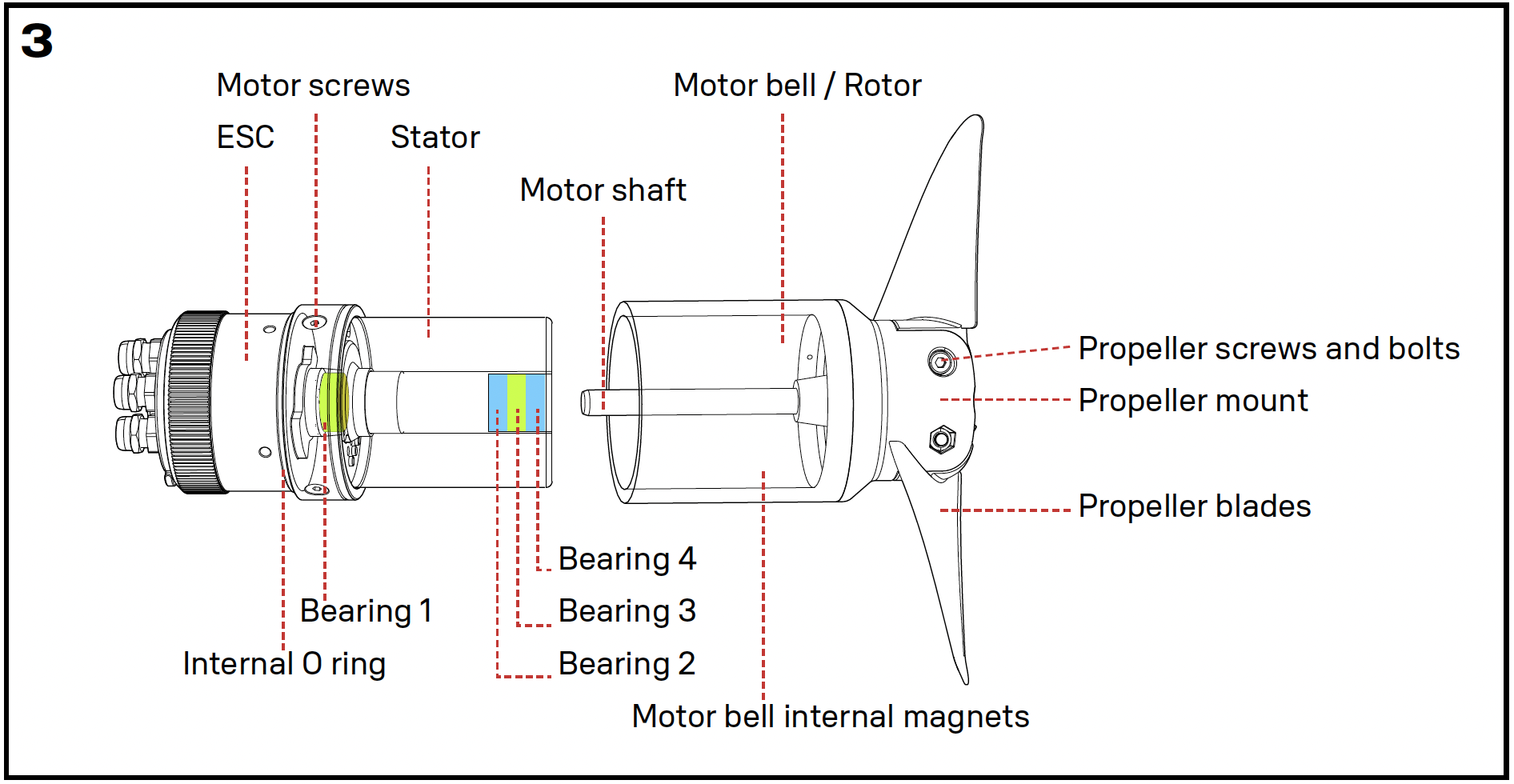

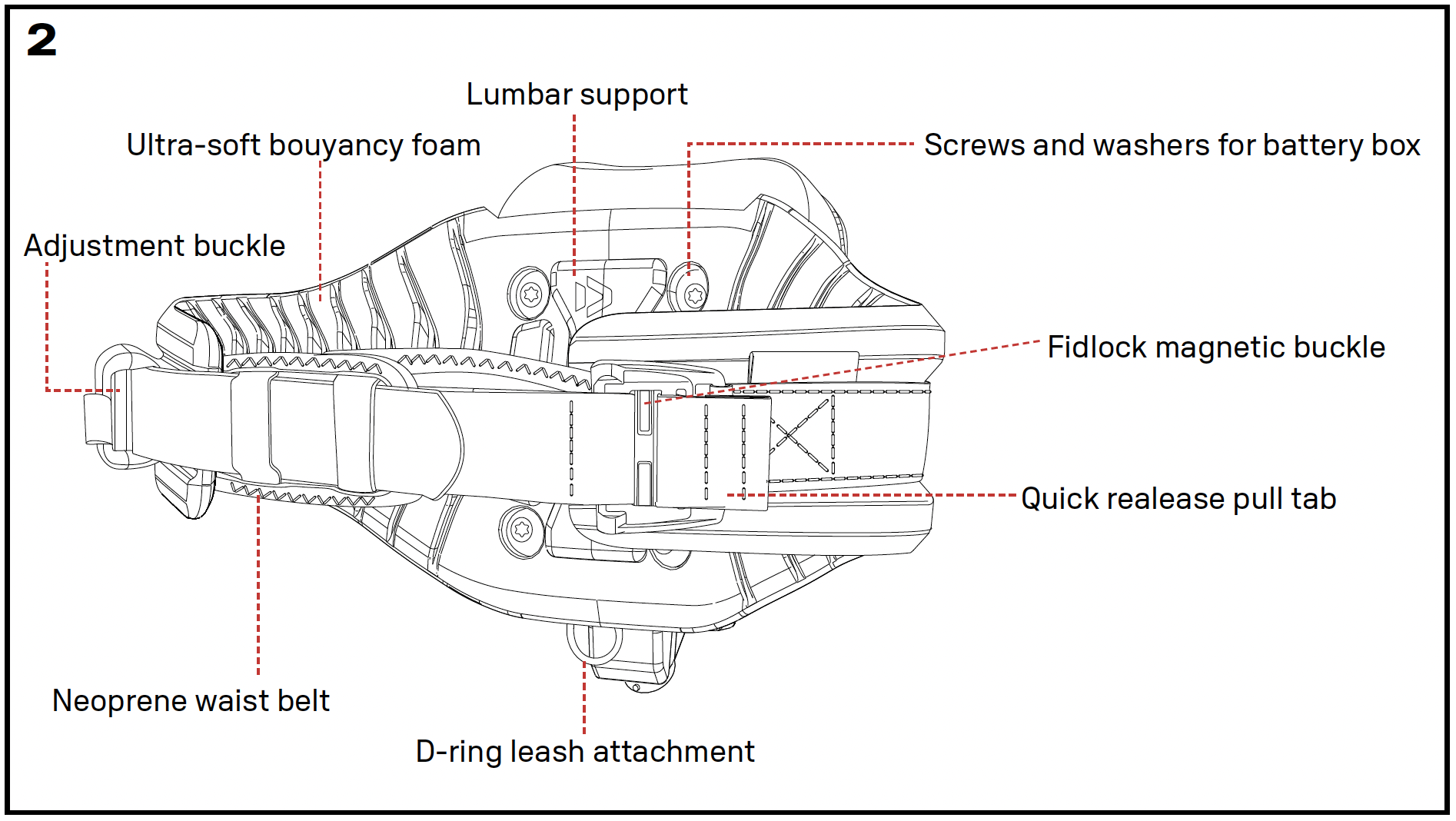

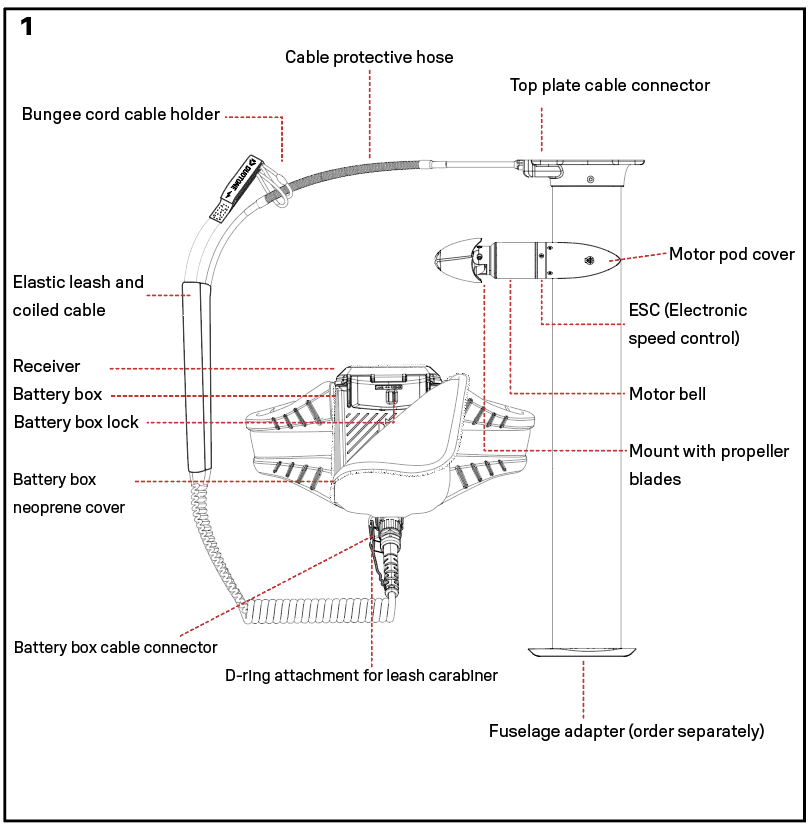

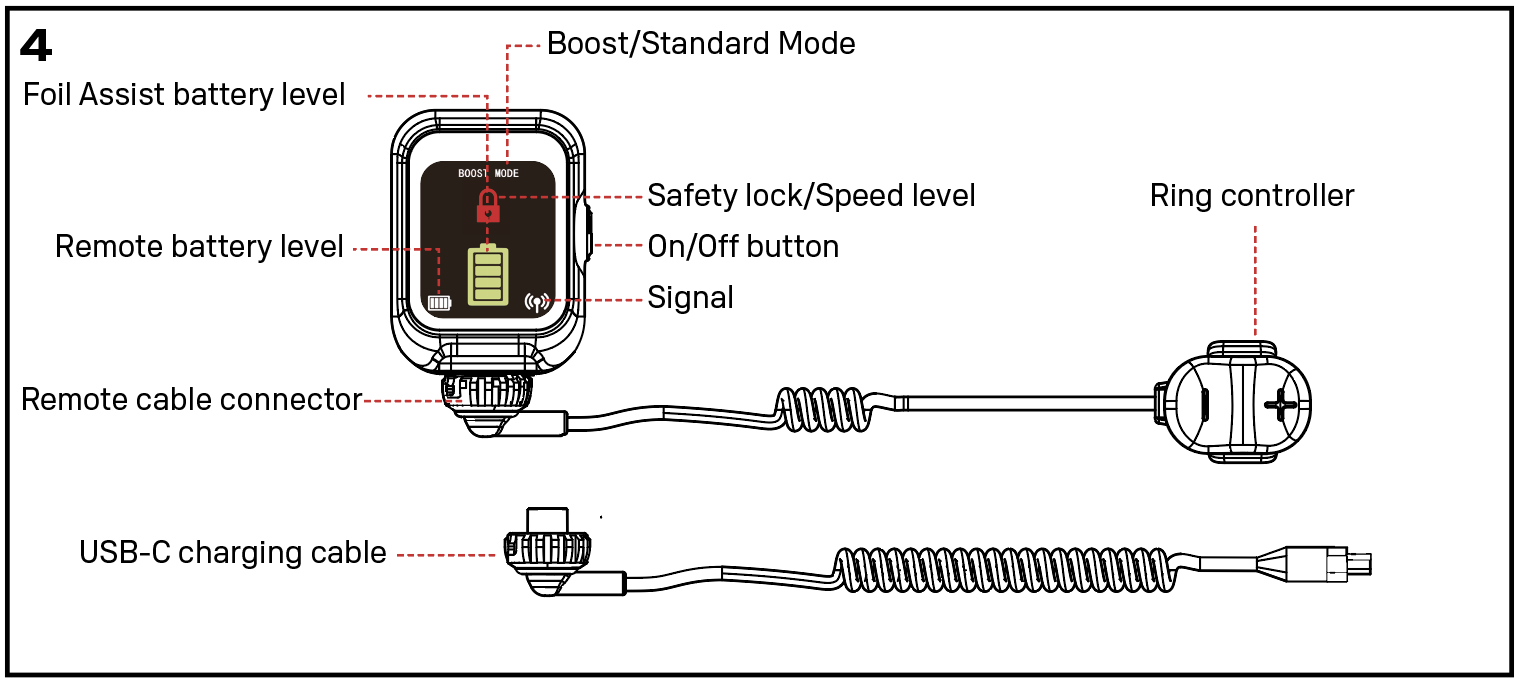

The Duotone Foil Assist consists of the eMast with motor, cable, and leash, the eHarness with battery box, and the Watch Ring Remote.In the following drawings, you will find a detailed overview of the different components and their parts.<img src="https://attachments.gorgias.help/5k0Dw70qLP8xvoQA/hc/1QNmd2Y4oA69XA0W/2025102209-d648d402-35f7-47b5-941a-3e9a2509d9ed-856d013e-1b24-4989-aea5-feb9156f43f8.png" style="width: 692px;" class="fr-fic fr-dib"><style type="text/css" id="isPasted">p.p1 {margin: 0.0px 0.0px 0.0px 0.0px; font: 7.5px Helvetica}</style>1 eHarness, cable, leash and eMast <img src="https://attachments.gorgias.help/5k0Dw70qLP8xvoQA/hc/1QNmd2Y4oA69XA0W/2025101708-26235c86-effa-4241-ac77-8490480b5730-258d5f5c-75f1-42b4-b1e1-093df3b4bc83.png" style="width: 692px;" class="fr-fic fr-dib fr-fil"><style type="text/css" id="isPasted">p.p1 {margin: 0.0px 0.0px 0.0px 0.0px; font: 7.5px Helvetica}</style>2 eHarness and battery box <img src="https://attachments.gorgias.help/5k0Dw70qLP8xvoQA/hc/1QNmd2Y4oA69XA0W/2025101708-c84cbfeb-b311-4895-afd9-92238a197e0f-dbc2e18d-37c8-4d78-8e4f-344991300a46.png" style="width: 692px;" class="fr-fic fr-dib fr-fil"><style type="text/css" id="isPasted">p.p1 {margin: 0.0px 0.0px 0.0px 0.0px; font: 7.5px Helvetica}</style>3 ESC, motor, bell &amp; propeller <img src="https://attachments.gorgias.help/5k0Dw70qLP8xvoQA/hc/1QNmd2Y4oA69XA0W/2025101713-653dcccd-2c0c-44b6-9756-18b2640776ed-9794b3b0-6c59-4c5e-9005-ed1996aa7cdb.png" style="width: 692px;" class="fr-fic fr-dib">4 Watch Ring Remote

View the detailed overview of the eMast with motor, cable, and leash, the eHarness with battery box, and the Watch Ring Remote.
